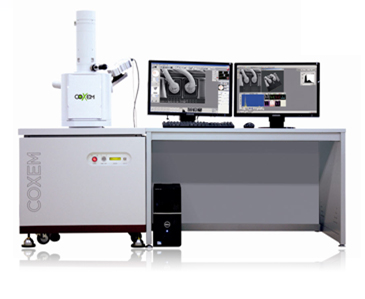

| CX-200 TM Scanning Electron Microscope (SEM) |
| EASY TO USE THE BEST Scanning Electron Microscope (SEM), CX-200 |
|
Have you ever thought Scanning Electron Microscope should be easy enough to
to operate and be shared commonly among numeral user. CX-200 offers high resolution and
convenient usage so that anyoune could obtain high agnification without difficulty.
Do your company have equipment operator because of the handling hardness of Scanning Electron Microscope?
Experience Coxem CX-200 and you will feel everyone could get high agnification image with small effort.
|
|
BEGINNER RECOGNIZE AT SHORT NOTICE HOW TO GET BEST QUALITY IMAGE WITH CX-200 |
|
Nanostation operation system of CX-200 makes it possible the auto stage navigate
just in accordance with mouse click. It looks like the same as navigating google map. Zoom
in and out operation from the screen image could be accomplished simply by using just
mouse wheel rolling. Like this way, the ultimate simplicity makes even beginner obtain high
quality image in 10 minutes tutoring at the site. |
|
|
| |
| Specification: CX-200TM |
| Magnification |
x 15 ~ x 300,000 |
| Resolution |
3.0nm [at 30Kv, SE Image] |
| Acceleration Voltage |
1~30kV |
| Electron Gun |
Tungsten filament (W) |
| Detector |
SE Detector(Optional: BSE.EDS) |
| Stage |
Only Z Axis Auto Stage
X:40mm, Y:40mm, T:-20o ~ 90o R:360˚, Z:0 to 60mm |
| Sample Size |
60mm (H), 130mm (Diameter) |
| Image Mode(Pixel) |
RED(320x240), TV(640x480), Slow(800x600), Photo(1280x960, 2560x1920, 5120x3840) |
| Frame Rate |
RED (Max. 30 frames/sec),
TV (Max. 10 frames/sec),
Slow (Max. 2 frames/sec) |
| Vacuum System |
Turbo molecular pump |
| Auto Functions |
Focus, Filament, Brightness/Contrast |
| OS |
Windows 7 |
| Operation |
Key Board/Mouse |
| Dimension |
800(W) x 900(L) x 1500(H)mm, 400kg |
|
|
|
|
|
| |
| Scanning Electron Microscope (SEM)s |
Scanning Electron Microscope (SEM) – Considered a revolutionary tool in the Nano world, Scanning Electron Microscope (SEM) is one of the most versatile tools used in topography and metrology for industries and departments such as education, health, defense and manufacturing (QC and R&D).
Scanning Electron Microscope (SEM) examines the surface and structure to reveal high magnification and deep focus, providing valuable insights and meeting customer specific needs.
Featured Scanning Electron Microscope (SEM) Product:
The COXEM CX-200 TA Scanning Electron Microscope (SEM) is a... Read More |
|
| |
|
| |
Exiton specializes in supplying Scanning Electron Microscope (SEM)/EDS equipment for scientific research institutes and laboratories around the world, including: Russia, Ukraine, Belorussia, Latvia, Lithuania, Kazakhstan, Moldova, Georgia, Mongolia , Poland, Hungary, India, France, Portugal, Spain, Finland and Italy.
