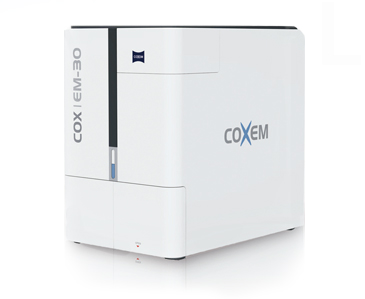

| EM-30 Scanning Electron Microscope (SEM) |
NAVIGATION TO NANOWORLD WITH EM |
How do you keep the forefront from competition in researching nanometer
small world. Coxem provides convenient Table-top Scanning Electron Microscope (SEM) to industry and school which makes
it possible having high reslution image precisely and quickly. By adopting EM, ti ts possible to observe nano-world and obtain high quality images without paying excessive expenses.
|
|
High Quality Images with Economical Price |
|
EM help customer to obtain um and nm quality images within a few minutes.
The size of EM enhances space efficiency in the laboratory. EM is the best reasonable
instrument which help science teacher to give visual explanation to the students. EM is
also more affordable to small and medium industry company. Coxem promises presise
nano-world measurement using EM. |
|
|
| |
| Specification: CX-200TM |
| Magnification |
x 20 ~ x 100,0000 |
| Resolution |
5nm [at 30kv, SE Image] |
| Acceleration Voltage |
1~230kV (1/3/5/10/15/20/30kV) |
| Electron Gun |
Tungsten Filament (W) |
| Detector |
SE Detector(Optional: BSE.EDS) |
| Stage |
X:35mm (Motorized), Y:35mm (Motorized), T: 0 to 45˚(Motorized), R:360˚, Z: 0 to 50mm |
| Sample Size |
45mm (H), 60mm (Diameter) |
| Image Mode(Pixel) |
RED(320x240), TV(640x480), Slow(800x600),
Photo(1280x960, 2560x1920, 5120x3840) |
| Frame Rate |
RED (Max. 30 frames/sec),
TV (Max. 10 frames/sec),
Slow (Max. 2 frames/sec) |
| Vacuum System |
Turbo molecular pump |
| Auto Functions |
Focus, Filament, Brightness/Contrast |
| OS |
Windows 7 |
| Operation |
Key Board/Mouse |
| Dimension |
400(W) x 600(L) x 550(H)mm, 100kg |
|
|
|
|
|
| |
| Scanning Electron Microscope (SEM)s |
Scanning Electron Microscope (SEM) – Considered a revolutionary tool in the Nano world, Scanning Electron Microscope (SEM) is one of the most versatile tools used in topography and metrology for industries and departments such as education, health, defense and manufacturing (QC and R&D).
Scanning Electron Microscope (SEM) examines the surface and structure to reveal high magnification and deep focus, providing valuable insights and meeting customer specific needs.
Featured Scanning Electron Microscope (SEM) Product:
The COXEM CX-200 TA Scanning Electron Microscope (SEM) is a... Read More |
|
| |
|
| |
Exiton specializes in supplying Scanning Electron Microscope (SEM)/EDS equipment for scientific research institutes and laboratories around the world, including: Russia, Ukraine, Belorussia, Latvia, Lithuania, Kazakhstan, Moldova, Georgia, Mongolia , Poland, Hungary, India, France, Portugal, Spain, Finland and Italy.
Request product information |
| |
|
|
|
|
